FP-36 Dynamic 6-point chest vest AIR with pelvic stabilizer

Product code: FP-36

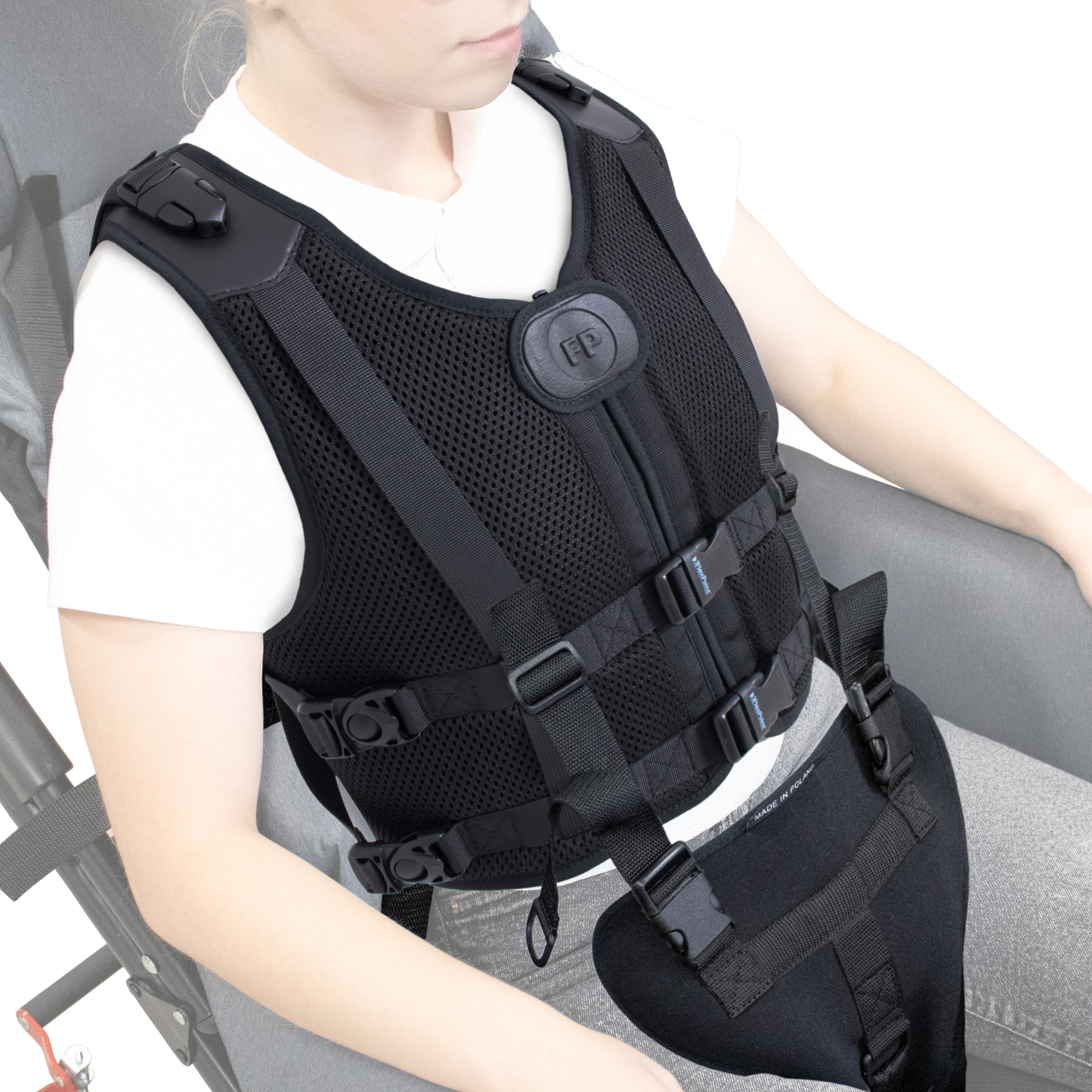

The Dynamic 6-point chest vest AIR with pelvic stabilizer is a professional registered medical device designed to stabilise the user in a sitting position in a wheelchair or rehabilitation chair. The product consists of a chest part (harness) and a pelvic strap. Both the harness and the pelvic support have a wide range of adjustment, allowing for an individual fit for the user.



The Dynamic 6-point chest vest AIR with pelvic stabilizer is a professional registered medical device designed to stabilise the user in a sitting position in a wheelchair or rehabilitation chair.

The product consists of a chest part (harness) and a pelvic strap. Both the harness and the pelvic support have a wide range of adjustment, allowing for an individual fit for the user.

The Dynamic 6-point chest vest AIR with pelvic stabilizer keeps the user in the correct sitting position. The product has the option of attaching to the seat back with shoulder straps, which maintain the joints in external rotation and the user's shoulder girdle in a stable position. This solution prevents the patient from a pathological flexion pattern of the upper limbs and also prevents their uncontrolled tendon reflexes.

The AIR 6-point harness is made from a very thick and perforated 3D knit fabric, which allows the body to breathe and the harness does not cause pressure and skin injuries, even on the user's sensitive skin.

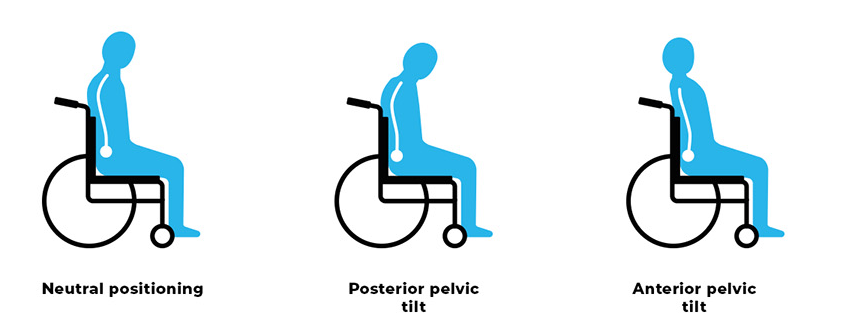

The pelvic strap, is attached to the harness with frontal straps. It keeps the pelvis in the physiological position as much as it is possible.

75bc83f5986325676b65f802de6d03f0

In addition, this pelvic strap keeps the patient securely on the seat of the wheelchair or rehabilitation chair, even with very little postural control of the user. Made of firm, pressure-reducing neoprene, it has wrap around straps that do not allow the pelvis to extend forward while sitting.

By using the length of these wrap around straps, we can adjust the amount of forward freedom of movement left to the user.

The pelvic support is anatomic shaped. It fits to the groin area perfectly, avoiding irritation of the inner thighs and allowing the product to remain comfortable even for those with a scissor pattern of lower limbs.

The AIR 6-point harness is fully adjustable in circumference, width and length of the shoulder straps for a customised fit. The harness ensures proper positioning of the trunk and pelvis in the sitting position. It perfectly stabilises the sternum and reduces excessive flexion pattern. Effectively improves head control, facilitates swallowing and breathing.

The use of the product in people with limited consciousness when assisted by a carer is possible due to the front secured zip to facilitate donning the product and the additional buckles securing the fastening, acting as a safety device in the event of a zip failure.

The AIR 6-point dynamic harness is a suitable medical product for people with spasticity, seizures, muscular dystrophy, Parkinson's, disability or anyone at risk of falling from a wheelchair or rehabilitation chair.

ATTENTION! for safety reasons chest support with zipper should be used only by people without mental illness.



uwaga Each chest support is available with front-pull (user’s fitting) or rear-pull (caregiver’s fitting). Choose your option while ordering the product.
uwaga Before using the chest support, it is essential to familiarize yourself with the safety rules referred in the instructions of use. For information on how to use chest support safety, see pages 8-9. Improper use and failure to comply with safety rules may endanger the user’s life and cause a serious detriment to the health of a person.




FP 01 main 2 600x600

Anatomical shape

maintains the chest’s shape. Special design prevents against upward shifting while user leans forward. It reduces the risk of pressure on the user’s throat.

FP01

Dynamic fabric’s structure

multi-directional knitted fabric provides proper dynamics and improves breathing. Also, it allows to reduce the pressure in case of involuntary movements, myoclonus and spasms.

chwyci i pociagnij

Hold & Pull™ System

An ergonomic, large D-shaped grip is a great facilitation for people with hand dysfunctions. It is easy to hold and makes the adjustment of the vest smooth.

.

Dociąg tylny

Rear-pull (caregiver’s fitting).

Dociąg przedni

Front-pull (user’s fitting).

specjalny splot włokien

Made of durable materials with smooth edges

to prevent abrasion and lesions of the skin. A special structure of the fibers prevents the belts from loosening.

latwy do czyszczenia

Easy to clean

both the straps and soft elements of the chest support can be washed by hand (more information about the product maintenance and cleaning can be found in the instructions for use).

latwe zapiecie 2

Quick release buckles

made of durable materials and do not contain metal parts.

Choose your size





DYNAMIC 6-POINT CHEST AIR VEST WITH PELVIC STABILIZER (FP-36)




wąska z zamkiem 1



Size Available colors (min - max) (min - max) (min - max) D E F G Chest circumference
FP-36-S czarny1 50 - 70 cm 32 - 36 cm  2 - 40 cm 58 cm 48 cm  2,5 cm 19 cm 50 - 70 cm
FP-36-M czarny1 70 - 100 cm  41 - 45 cm 2 - 45 cm 63 cm  53 cm  2,5 cm 29 cm 70 - 100 cm
FP-36-L czarny1 100 - 135 cm 43 - 47 cm  2 - 50 cm  68 cm 58 cm  2,5 cm 30 cm 100 - 135 cm



wąska z zamkiem 1



Size Available colors A B C D
FP-36-S czarny1 45 cm 23 cm  2,5 cm 5,5 cm
FP-36-M czarny1 68 cm  28 cm 3 cm 6,5 cm
FP-36-L czarny1 78 cm 31 cm  3 cm  7 cm




ATTENTION!

Choose the suitable type of the vest adjustment when ordering.
Each chest support is available with a front-pull (user side) or rear-pull (caregiver side) adjustment.

Mounting triangle
Used for installation of straps in belts and vests on strollers and wheelchairs.

D-shaped grip
D-shaped grip is a great facilitation for users with hand dysfunctions. Its ergonomic shape makes it easy to hold and adjust.

Strap buckle

Secures the user and it can be quickly unbuckled in case of emergency.

Fastening strap
You can adjust the product to the user’s body by adapting the length of the fastening strap.

Sliding buckle
Prevents the strap from loosening and moving.
